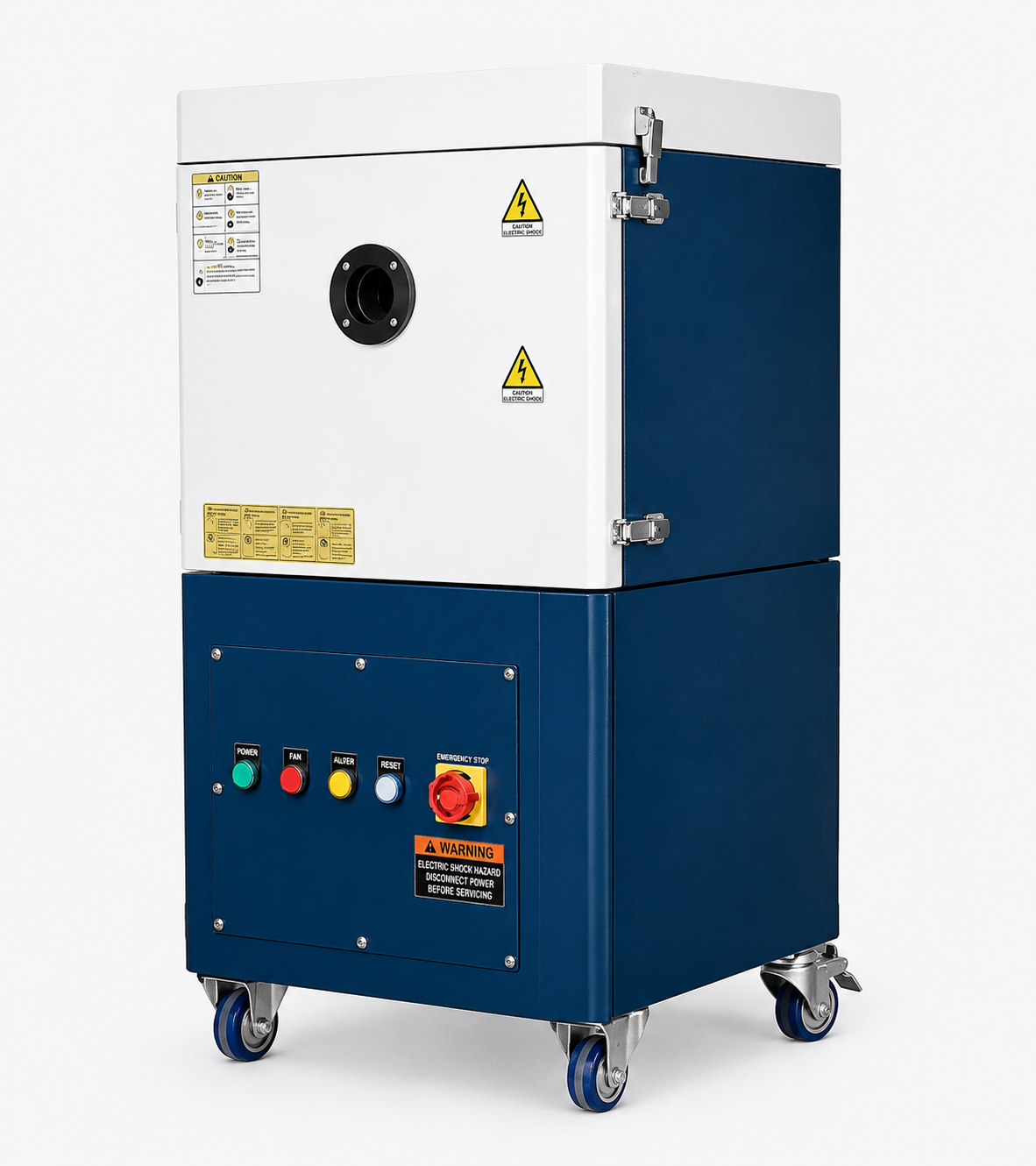

MOBILE VACUUM FUME EXTRACTOR
KSG-5.5A industrial high vacuum dust collector Features:
● DN 44mm or 51mm flexible hose
● Can be connected to various magnetic suction nozzles, or connect 1-4 dedicated high vacuum suction welding guns
● Two-stage filtration, filtration efficiency 99.9%@ 0.3um
● CE, RoHS approved
Introduction:
The mobile high vacuum fume extractor has a reasonable design structure with light weight and strong suction. It has a built-in high-vacuum turbine fan unit. The light and compact body can be moved at will. With source capture, the high-pressure composite suction hose can be used flexibly to reach positions that cannot be reached by the suction arm and any other means.
In addition, it has a multi-station integrated design, compact structure, automatic frequency conversion, PLC automatic monitoring of working status. It is convenient to operate, energy-saving and reliable, and can be flexibly applied to various working conditions.
Parameters:
| Model | KSG-5.5A |
| Air Flow | 700±10 m3/h |
| Power | 5.5kW |
| Power Supply | 3x380V/50Hz |
| Maximum Pressure | 26000-29500Pa |
| Filter Material | Polyester + PTFE |
| Filtering Area | 20m2 |
| Filtration Efficiency | ≥99.9% |
| Filtering Precision | ≥0.3um |
| Filter Cartridge | 2 Pcs |
| Cleaning Method | Automatic cleaning |
| Compressed Air | 0.5~0.6Mpa |
| Noise Level | ≤72±5 dB(A) |
| Dimension (WxDxH) | 700×700×1850mm |
| Weight | 295±10kg |
Options & Accessories:
PLC Intelligent control system
Frequency converter
Hose adapter
Suction nozzle
Applications:
Welding robot
Manual welding (environmental protection welding gun)
Hand-held grinding, polishing, etc.
