FEAT CRAFT SOLDERING FUME EXTRACTOR

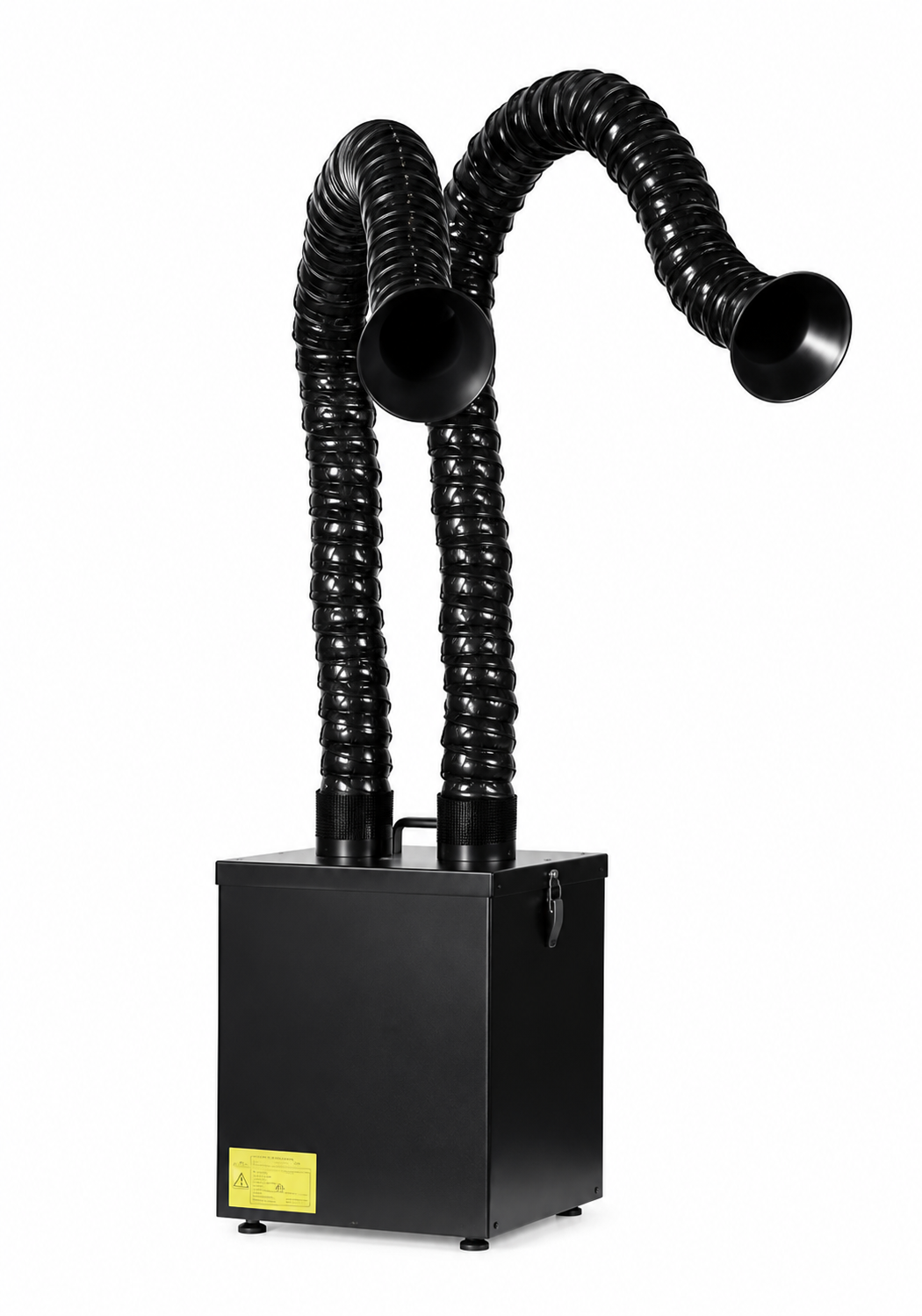

FEAT CRAFT KSXH-20B
Soldering fume extractor is integrated design, convenient installation, flexible move, no pipes needed.

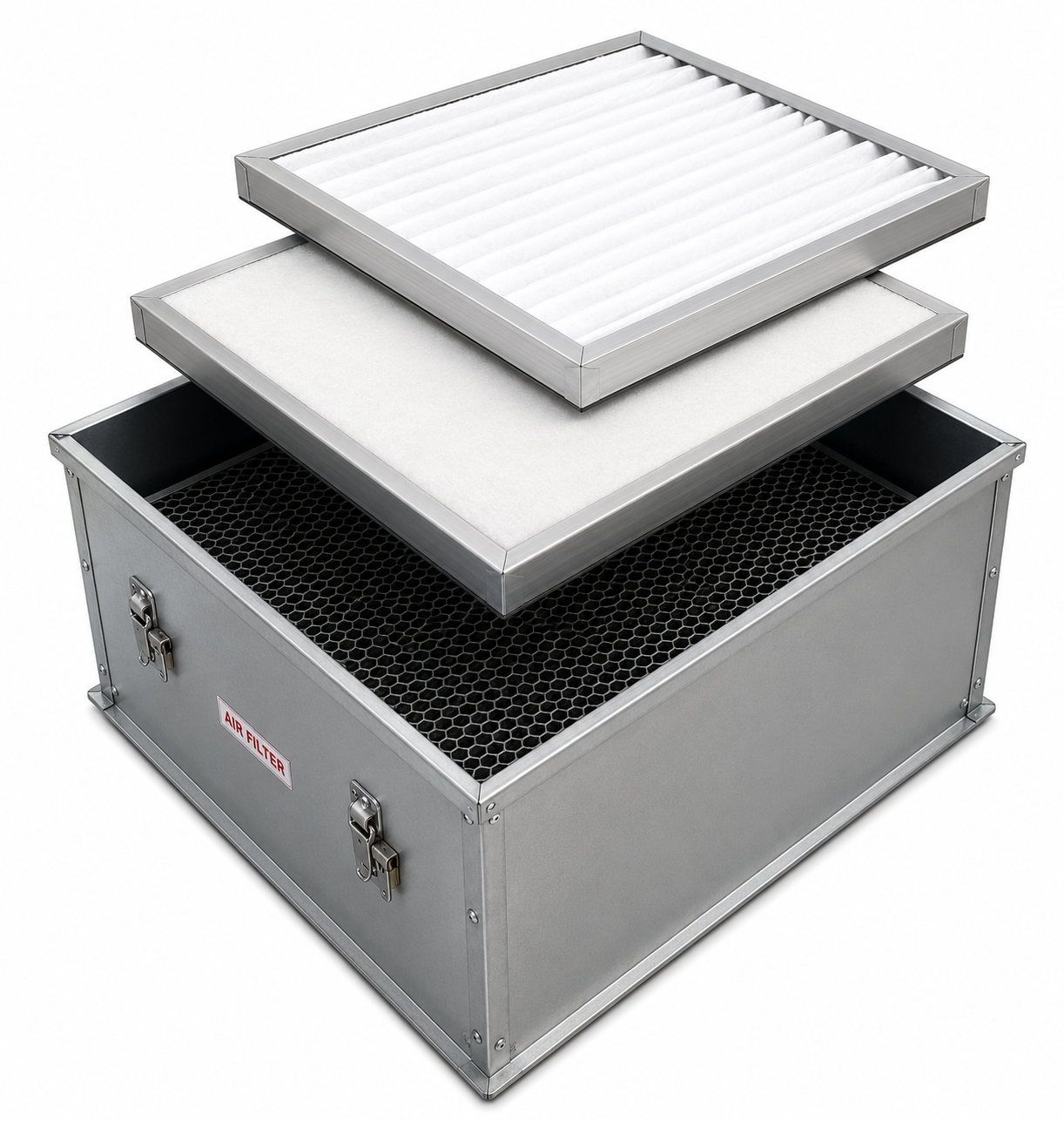

It adopts internal three layers filtering with active carbon filter to ensure the filter more targeted, get rid of smell stronger, extend the service life of filter materials.

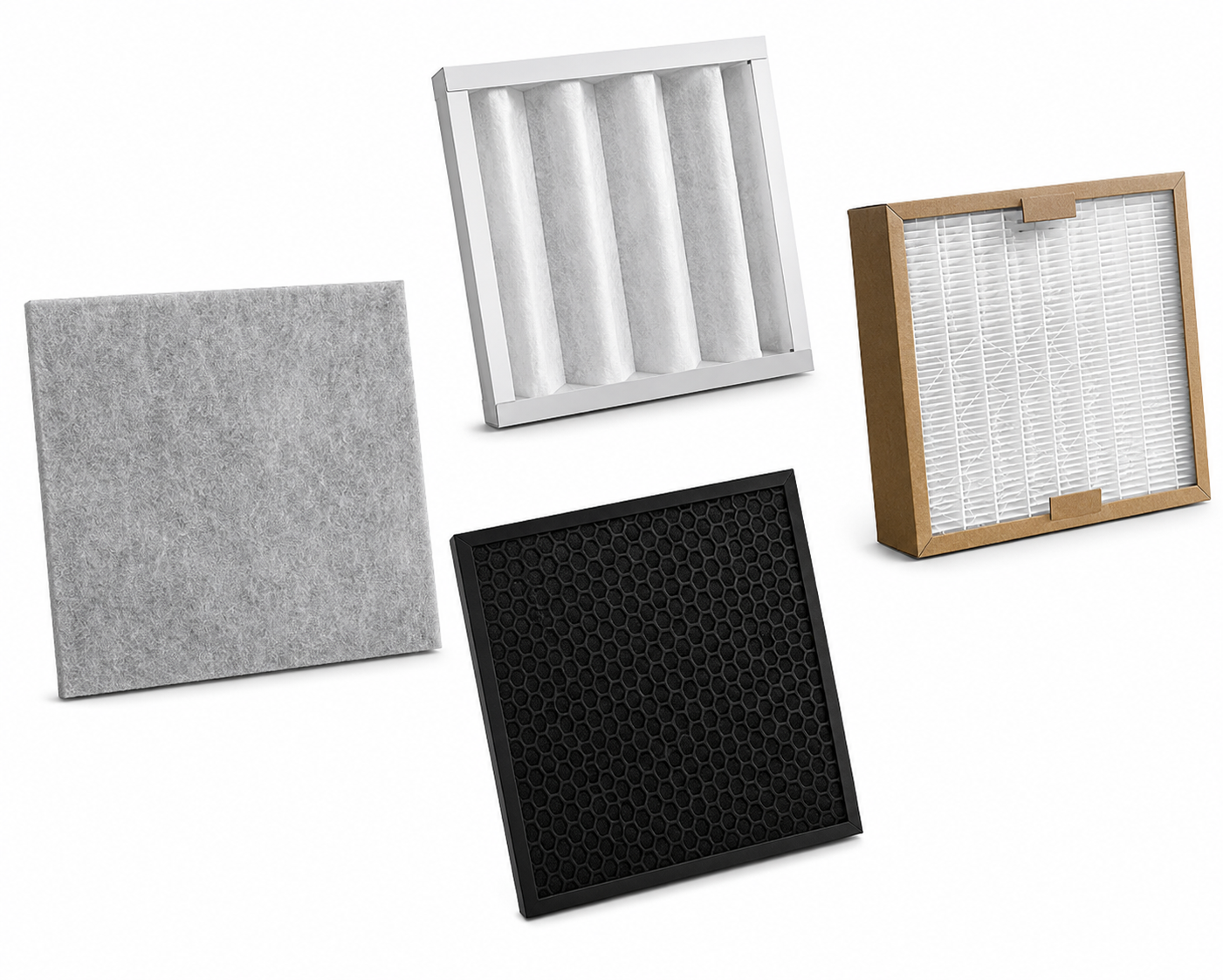

Soldering fume extractor filter consists of initial, medium, high efficiency and active carbon filter.
FEATURES
♦ Compact and reasonable integrated structure design.
♦ Long service life, low noise, large airflow.

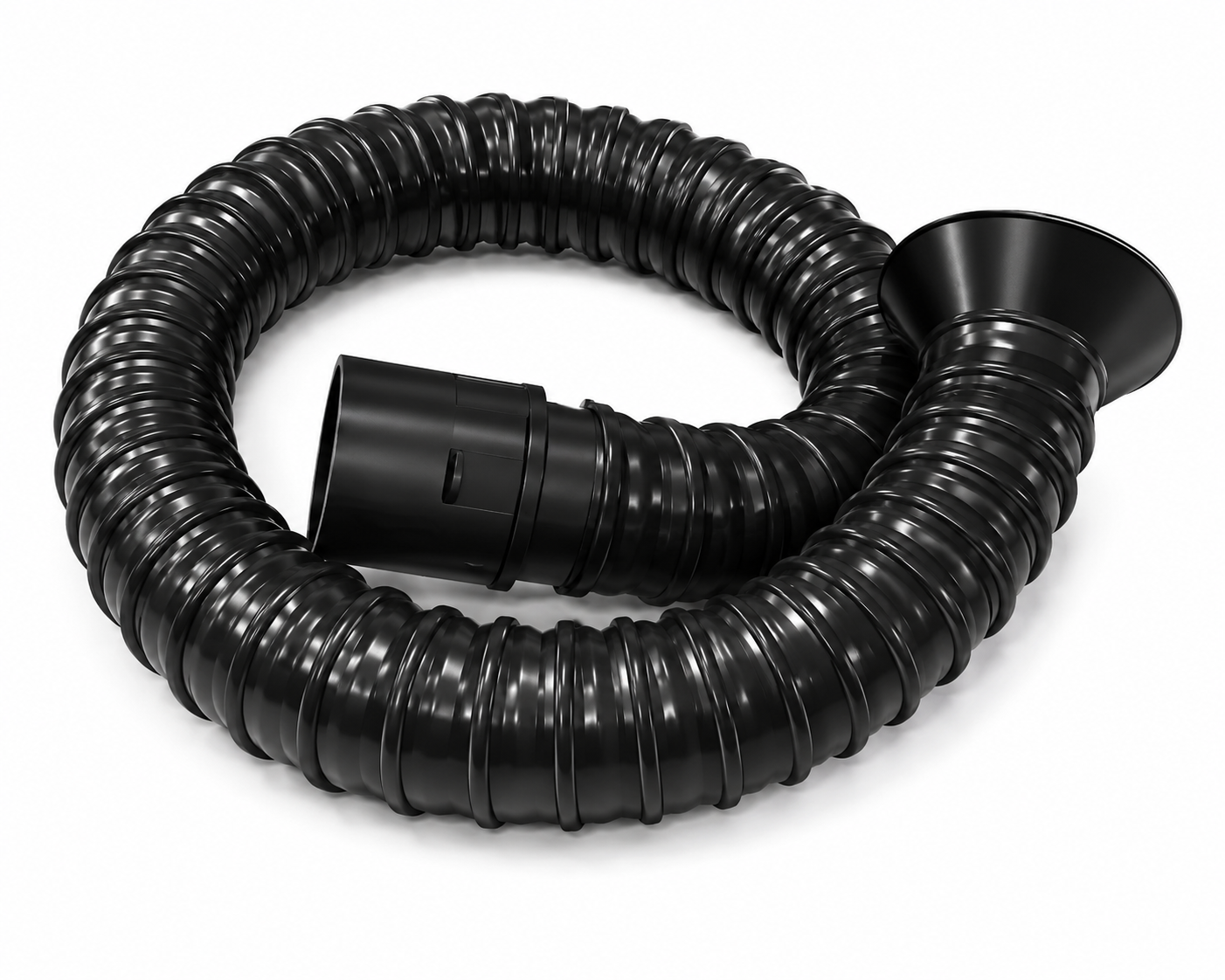

♦ Equipped with adjustable flexible suction arm.
APPLICATIONS
♦ Soldering oven, wave soldering, reflow oven.
♦ Laser welding, engraving, marking, cutting.
♦ Low to middle levels of fume and dust.
TECHNOLOGY DATA
| Model | KSXH-20B | KSXH-26B | KSJ-0.7B |
| Fan Air Flow | 480+20m³h | 1000±100m²/h | 2000±10m²/h |
| Inlet Air Flow | 260m³/h | 850m²h | 1200m²h |
| Motor Power | 200W | 260W | 1100W |
| Power Supply | 1x220V 50 Hz | 1x220V 50 Hz | 1x220V 50 Hz |
| Filter Material | Cotton,Cellulose,Carbon | Cotton,Cellulose,Carbon | Cotton,Cellulose,Carbon |
| Filtration Area | 3m² | 7m² | 15m² |
| Filtration Efficiency | ≥95% | ≥95% | ≥99% |
| Filtration Precision | ≥0.5μm | ≥0.5um | ≥0.3μm |
| Filter Cartridge | 3pcs | 3pcs | 3pcs |
| Cleaning Method | Disposable | Disposable | Disposable |
| Noise Level | ≤65±5dB(A) | ≤65±5dB(A) | ≤70±5dB(A) |
| Inlet | Φ75mm,1.2m, 2pcs | Φ75mm, 1.2m,4pcs | Φ160mm,2m,1pc |
| Dimension (WxDxH) | 310x310x420mm | 540x500x780mm | 660x760x1200mm |
| Weight | 15±2Kgs | 48±2Kgs | 138±5Kgs |
